NOP 2nd floor / west wing

Public

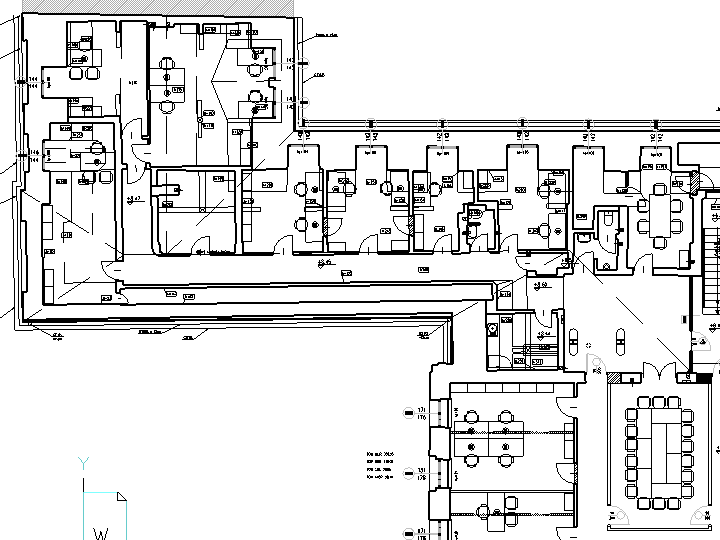

West wing - Investor's planning

The original plan left the floor layout largely as-is.

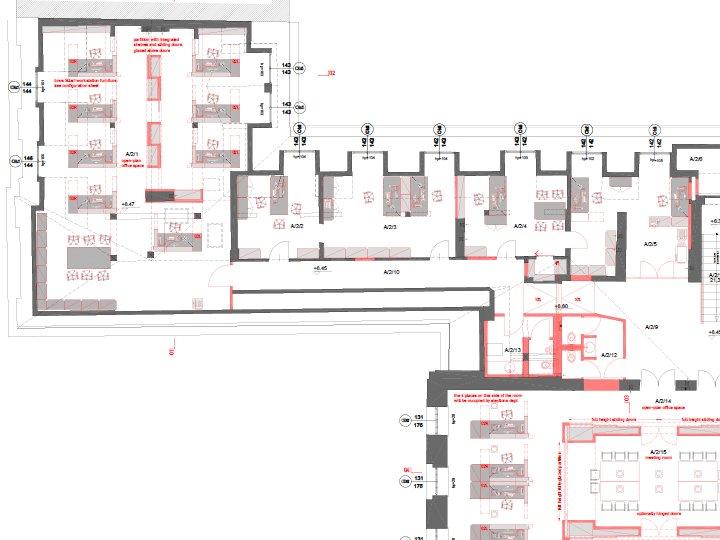

West wing - Remodeling proposal

The new plan reorganized the layout quite completely

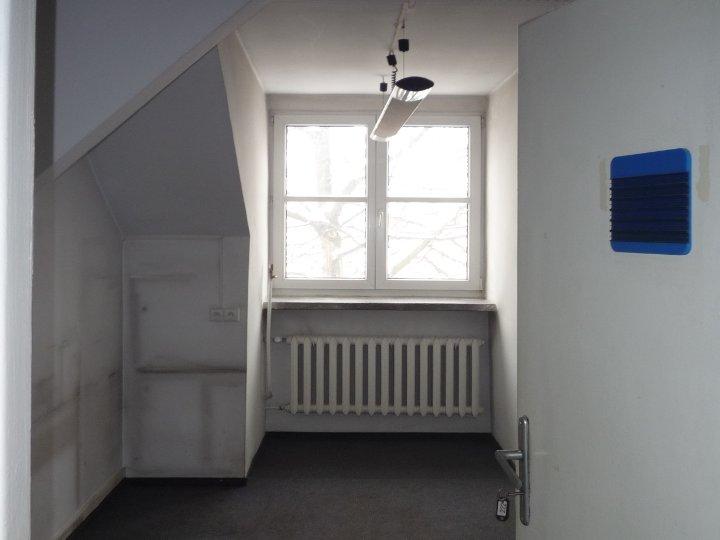

A2-3 room. before works

A typical room in the post-war reconstruction part

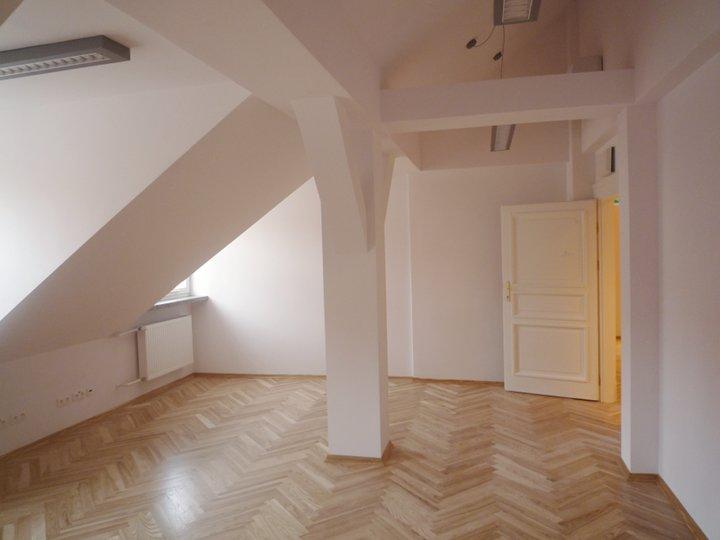

A2-3 room, after works

Some of the small rooms were joined to create larger offices

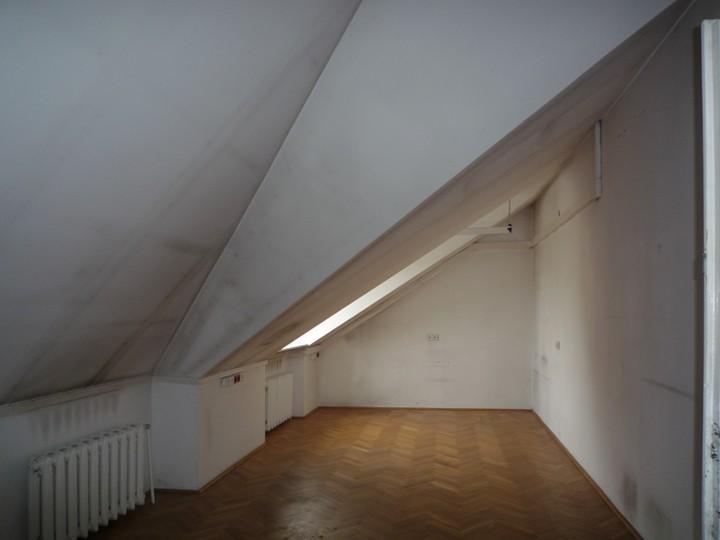

A2-1 room, before works

The attic along ul. Miodowa was divided into small compartments, some lacking fenestration
A2-1 room, initial proposal

The suppression of partitions and suspended ceilings created a spacious volume (luxrender visualization)
A2-1 room, initial proposal

Conference table in the center of the open-plan office (luxrender visualization)
A2-1 room, proposal

Final furniture layout for undivided space (blender cycles visualization)

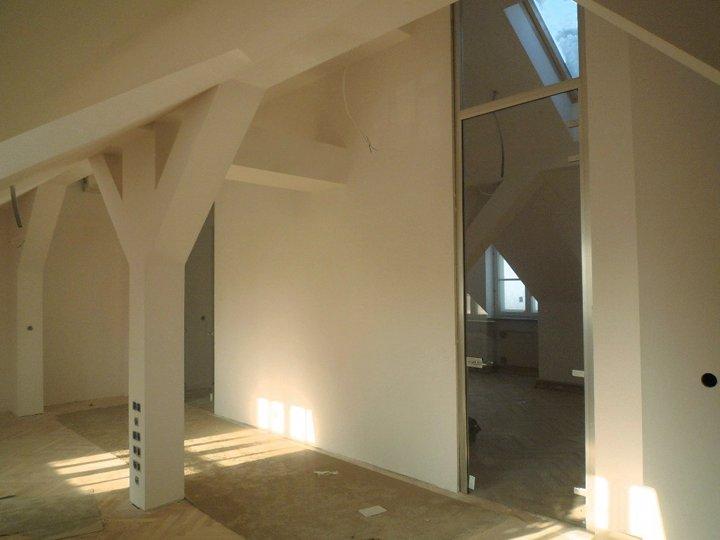

A2-1 room, after works

Due to staff reservations against open-plan offices, the room was eventually split in two

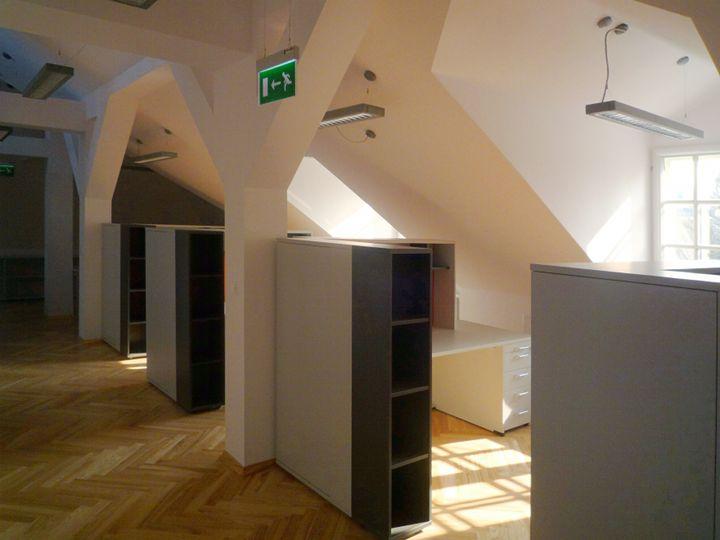

A2-1 room, with furniture

In all, the room now accommodates 8 custom workstations

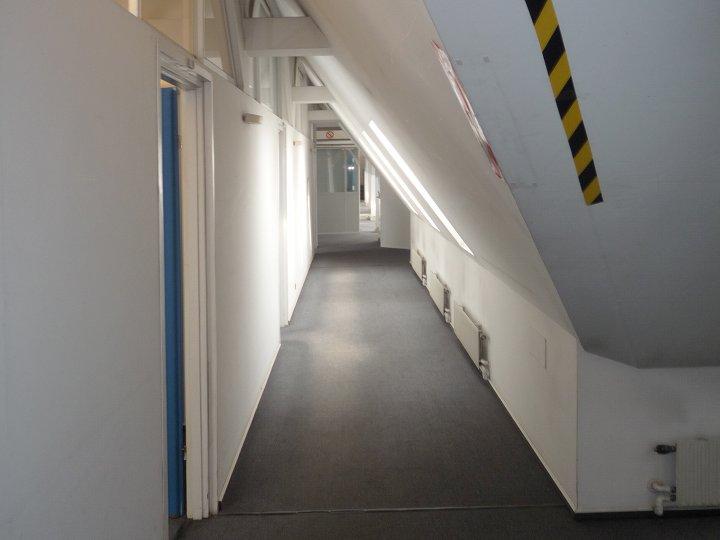

A2-7 room, before works

Narrow corridor in the north-west wing

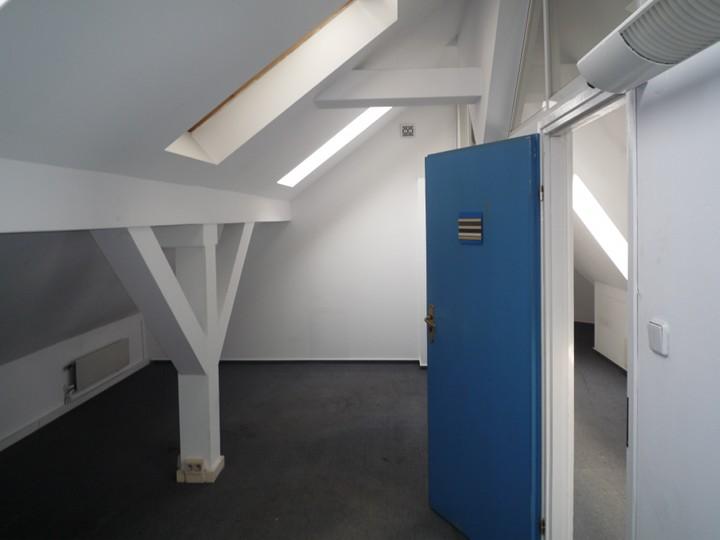

A2-7 room, before works

The 1990's conversion featured small offices with overhead fenestration

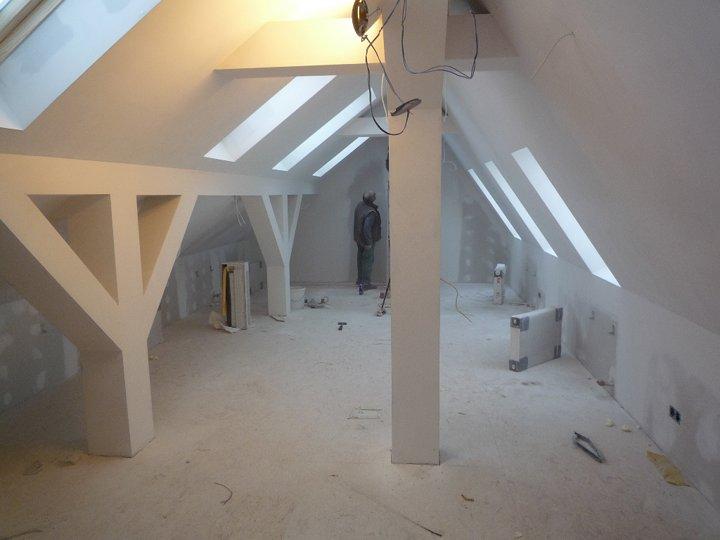

A2-7 room, during works

Removal of the partitions gave access to the lower rooflights facing the courtyard

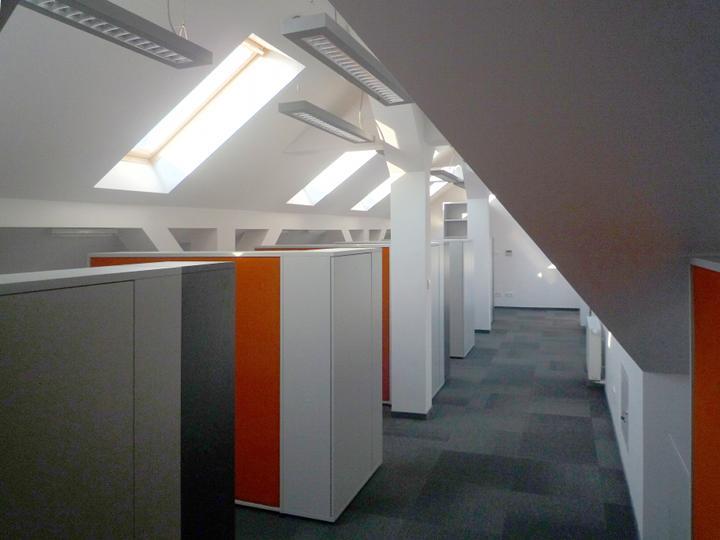

A2-7 room, after works

The room is now equipped with 5 custom workstations

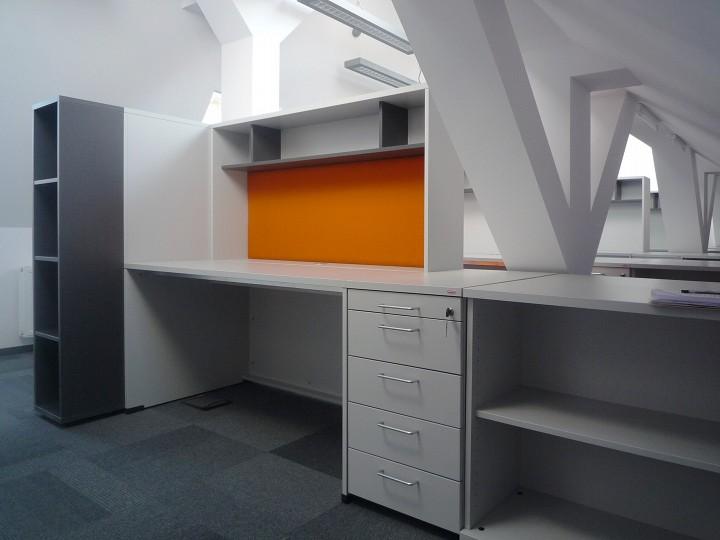

A2-7 room, after works

Detail view of a workstation

The building's south-west wing had its attic already converted to usable space during post-war reconstruction, but consisted of small rooms, some evoking rather claustrophobic feelings.

While taking the needs of the department to be accommodated into account, the proposal sought to bring out the spacial qualities of the roof by removing unnecessary partitions and suspended ceilings, giving the rooms maximum volume. This was welcomed by the investor, but met with reservations by some of the users, so that in the biggest room (A2-1), we finally settled for a central division.

Apart from re-shaping all the rooms, existing toilets and kitchenettes were removed (in favor of new ones in the central part), and new wall openings were introduced.
